TMT120 & 130 系列

适合洁净环境安装的高精度温度测量变送器

产品特点

Platinum RTD temperature sensor for outstanding measurement stability and accuracy

Interchangeable probe, easy field calibration

Resistant to dust and most chemicals

Enclosure IP65

Traceable calibration certificate: 1 point for temperature

Suitable for cleanrooms and other demanding HVAC and light industrial applications

产品概述技术参数电气连接外形尺寸产品资料选型表操作手册相关视频

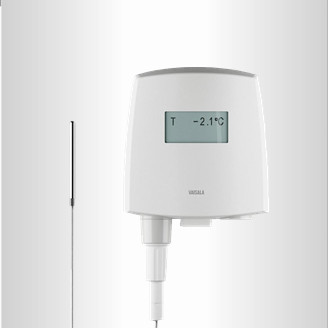

Vaisala Temperature Transmitters TMT120 and TMT130 are designed for temperature monitoring in cleanrooms and are also suitable for other demanding HVAC and light industrial applications.

Performance

The TMT120 and TMT130 transmitters incorporate platinum RTD temperature sensor technology for outstanding measurement stability and accuracy.The TMT120 and TMT130 transmitter enclosure is optimized for use in cleanrooms. The smooth surface of the enclosure makes it easy to clean and the enclosure material is chosen to tolerate cleaning agents. Furthermore, cabling can be done through the back wall of the transmitter.

Interchangeable probe

The TMT120 and TMT130 transmitters use a fully interchangeable temperature probe. The probe can be easily removed and replaced with a new one without having to adjust the transmitter, which allows for easy and quick recalibration of the transmitter. The probe can be adjusted using one of Vaisala's handheld meters as a reference.

Available options

The TMT120 and TMT130 transmitters are available as wall mounted with a fixed or remote probe. For high temperature applications or where space is limited, the remote probe is ideal. For an extended temperature range, the transmitter can be optionally ordered with TMP115, a wide-range temperature probe, which includes a 3-m (9.8 ft) sensor cable. The length includes the probe body and sensor tip.The optional LCD display shows the measurement values in selected units.
