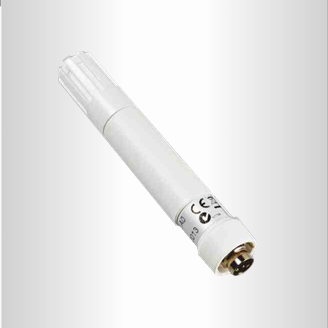

HMP113

具有卓越的稳定性和高化学耐受性的温、湿度测量探头

产品特点

Fast thermal response time

Low power consumption

Start-up time<2s

Measurement range:0 ... 100 %RH; -40 ... +60°C

Detachable cable with standard 4-pin M8 connector

Plastic enclosure with IP54 classification

Proven Vaisala HUMICAP®180R sensor for excellent stability

Optional RS485 digital output

Optional dew point calculation

Traceable: comes with calibration certificate. ±1.5%RH measurement accuracy (0 ... 90%RH)

产品概述技术参数电气连接外形尺寸产品资料选型表操作手册相关视频

The Vaisala HUMICAP®Vaisala HUMICAP®Humidity and Temperature Probe HMP113 is a highly accurate and cost-effective humidity probe with plastic enclosure. It is designed for indoor environments, integration into other manufacturers’equipment, or use with Vaisala HUMICAP® Hand-Held Humidity and Temperature Meter HM40.

Easy Installation

The compact probe fits into tight spaces.The cable has a threaded M8 connector for easy installation. Different cablelengths and a selection of accessories are available.

Low Power Consumption

HMP113 is suitable for battery powered applications due to its very low power consumption. It also has an extremely fast start-up time.

Several Outputs

There are two voltage outputs for relative humidity and temperature or dew point measurement. An optional RS-485 output with Modbus support is also available.

High Performance

HMP113 HMP113 has a PC/ABS plastic enclosure and is suitable for noncondensing environments with fast temperature changes and a need for high accuracy measurements with traceability. HMP113 also has a high chemical tolerance thanks to the proven Vaisala HUMICAP® 180R sensor.

Variety of Calibration Options

A quick field calibration can easily be carried out using a hand-held meter, for example Vaisala Hand-Held Meter HM40. Alternatively, the probe can be calibrated using a PC with USB cable or sent to a Vaisala Service Center.
